Teaching an xArm6 to fetch from two RGB views

Overview

A small tabletop task with the hard parts of real manipulation.

We deliberately use only 2D RGB observations — no depth, no 3D reconstruction — so the policy must learn grasp alignment, lifting, and precise placement from partial views and gripper occlusion. We train a vanilla ACT baseline and a history-aware variant that conditions on the last two observation steps, and evaluate both on hardware.

Method

One loop records human skill; ACT turns it into a policy.

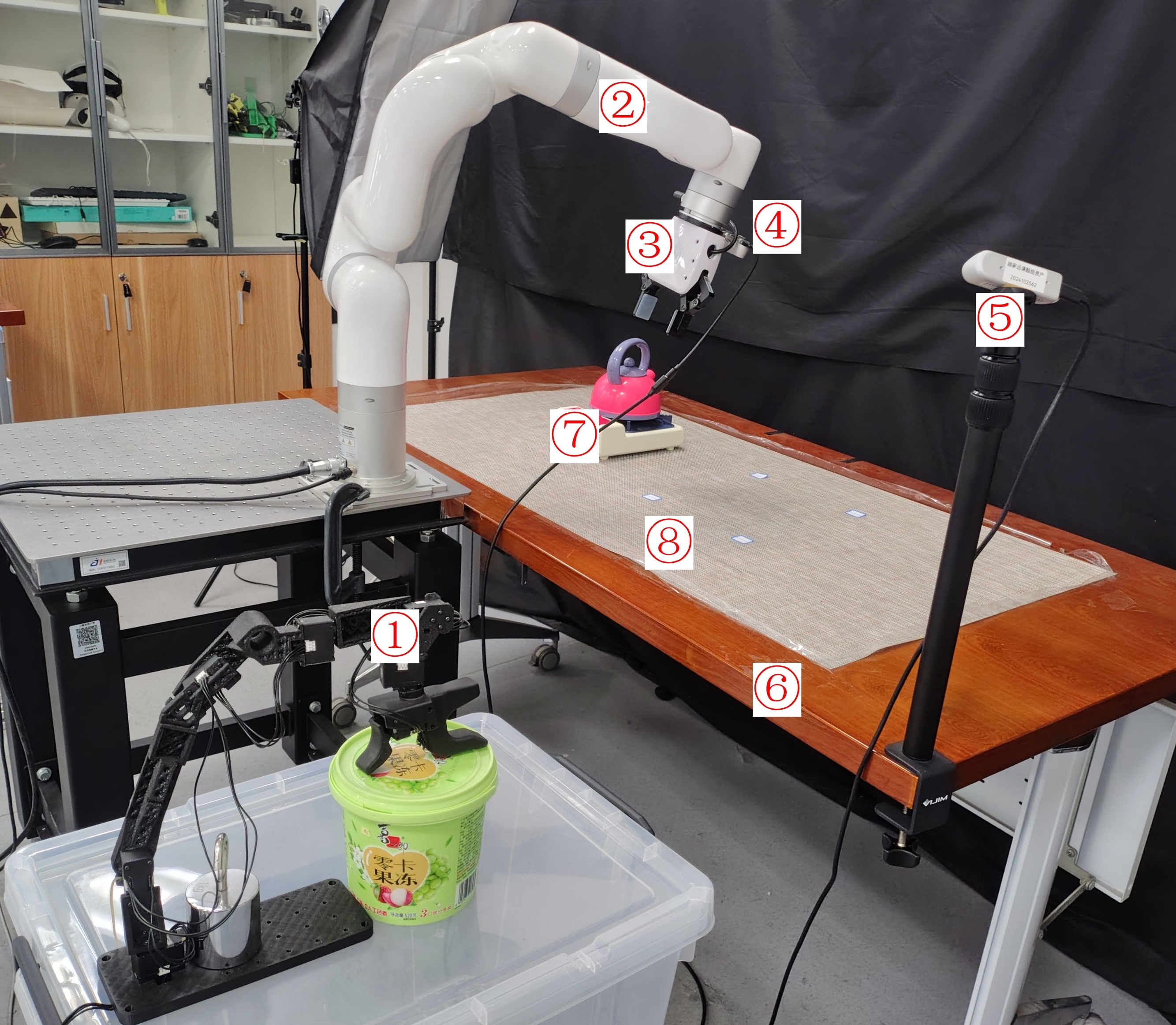

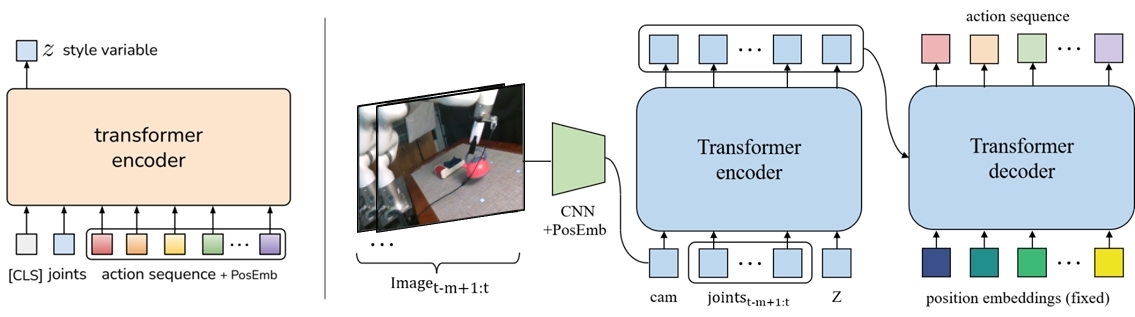

A Gello leader arm drives the xArm6 follower while robot state and two RGB streams are recorded at 30 Hz into a LeRobot dataset. Offline, ACT maps the two camera views and proprioception to a short chunk of future joint actions, using a ResNet18 backbone, a Transformer encoder–decoder, and a CVAE latent. Our history-aware variant adds a spatio-temporal positional encoding so the model can attend over the current and previous frame.

Data collection

Demonstrations recorded directly on the physical setup.

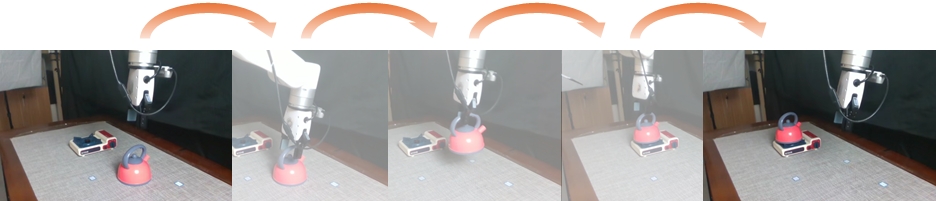

The Gello leader gives an intuitive control interface; follower, cameras, and dataset writer run in one synchronized loop, capturing the full approach → grasp → lift → transfer → place → retreat motion.

Results

Both policies reach near-ceiling success on hardware.

Each policy was evaluated over 40 trials with the kettle uniformly sampled across the workspace. A trial counts as a success only if it is collision-free, places the kettle within ±3 cm and upright, and the arm returns home — all within 90 s.

The added history did not measurably improve this near-saturated task — and the single baseline failure bent the kettle handle, confounding the comparison. The full analysis is in our final report.
